Integrated Circuits and Embedded Systems

Processing unit design for high-performance computing processors

LIU Yu, ZHANG Jie, ZHOU Le

Integrated Circuits and Embedded Systems, 2025, 25(9): 57-62. DOI: 10.20193/j.ices2097-4191.2025.0039

参数	寒武纪 MLU220	华为 Atlas200	英伟达 Jetson TX2	存算融合
INT8算力/TOPS	16.0	16.0	4.4	8.0
功耗/W	10.0	13.8	7.5	3.0
性能功耗比/ (TOPS·W^-1)	1.60	1.16	0.59	2.47

Table 3 Comparison of computational efficiency

Other figure/table from this article

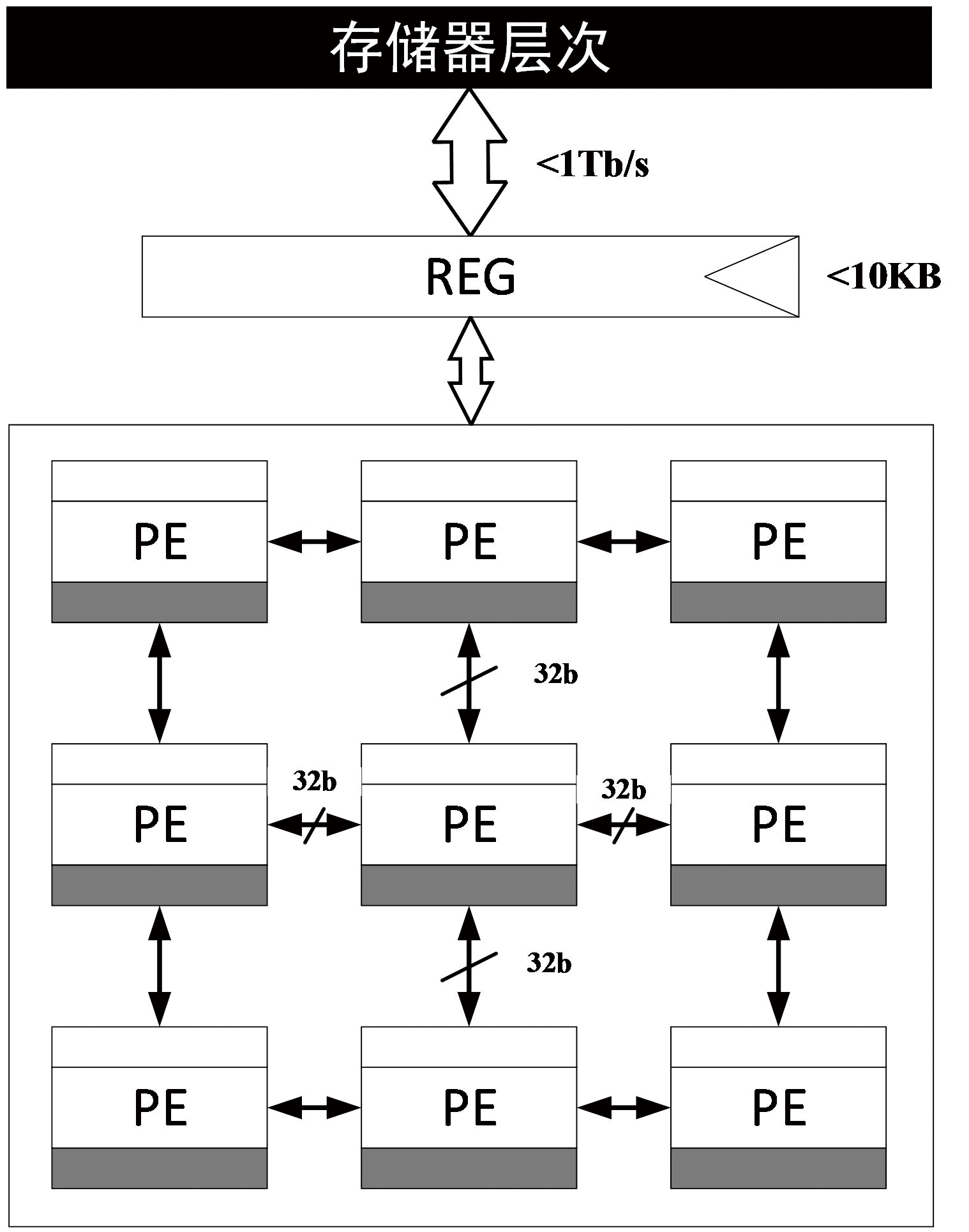

Fig. 1 Interconnection architecture of memory-computing convergence computational unit

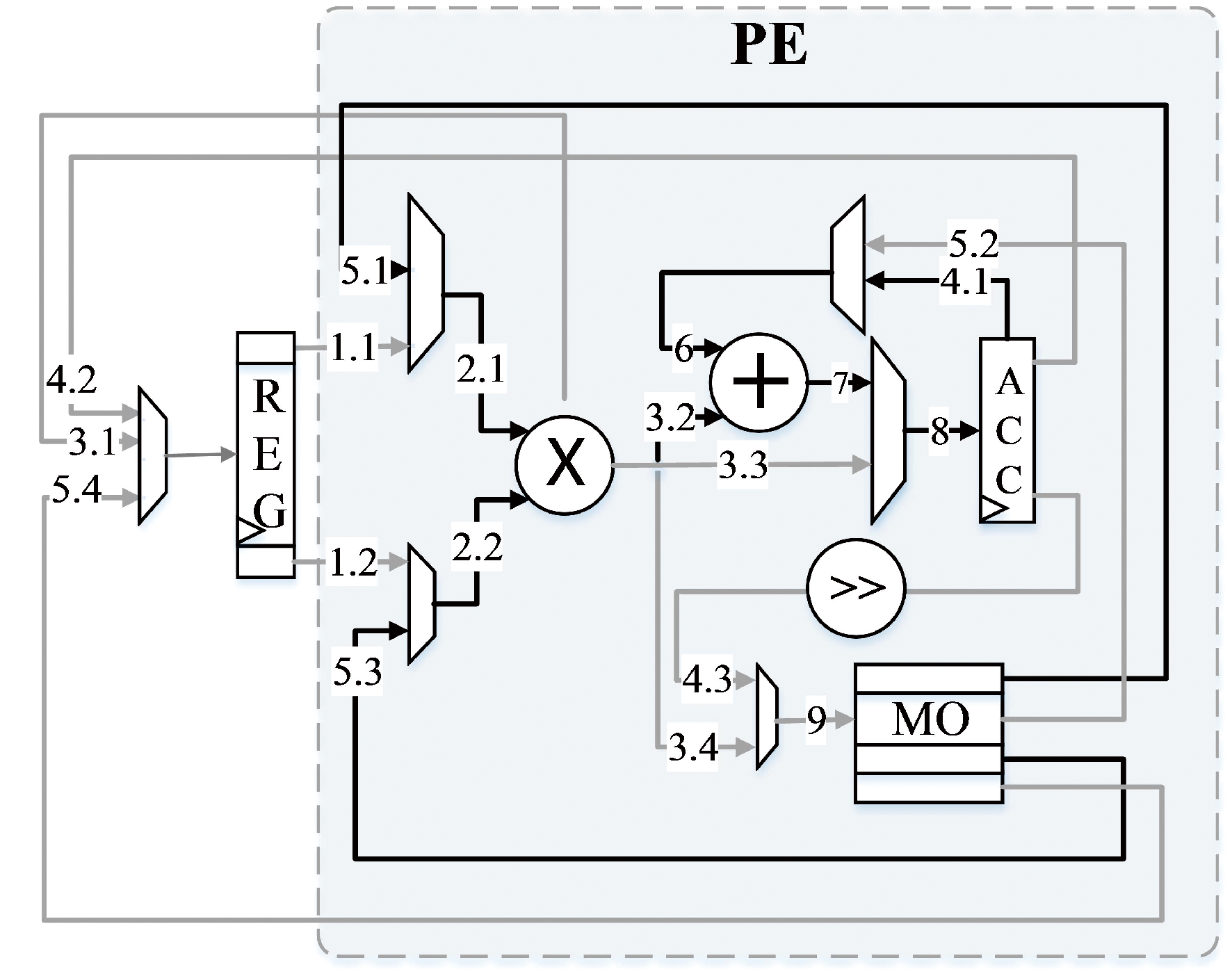

Fig. 2 Structure of processing unit

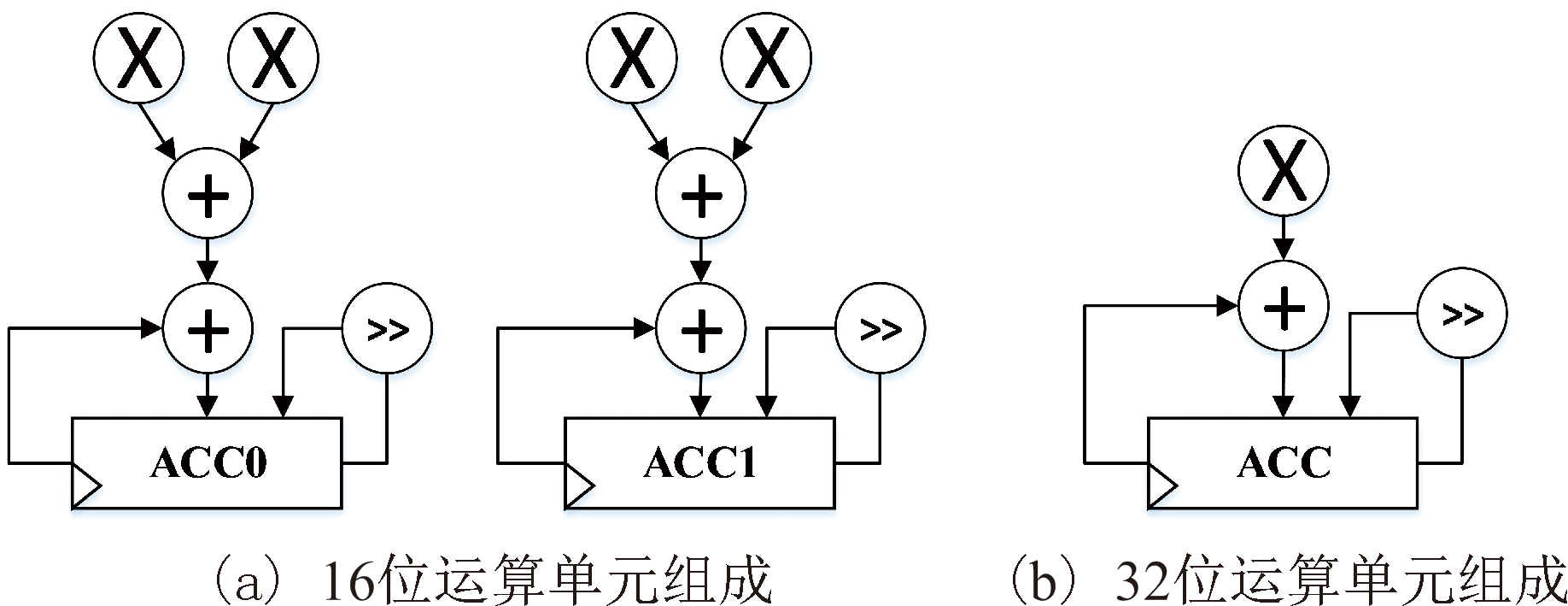

Fig. 3 Multi precision hardware reuse

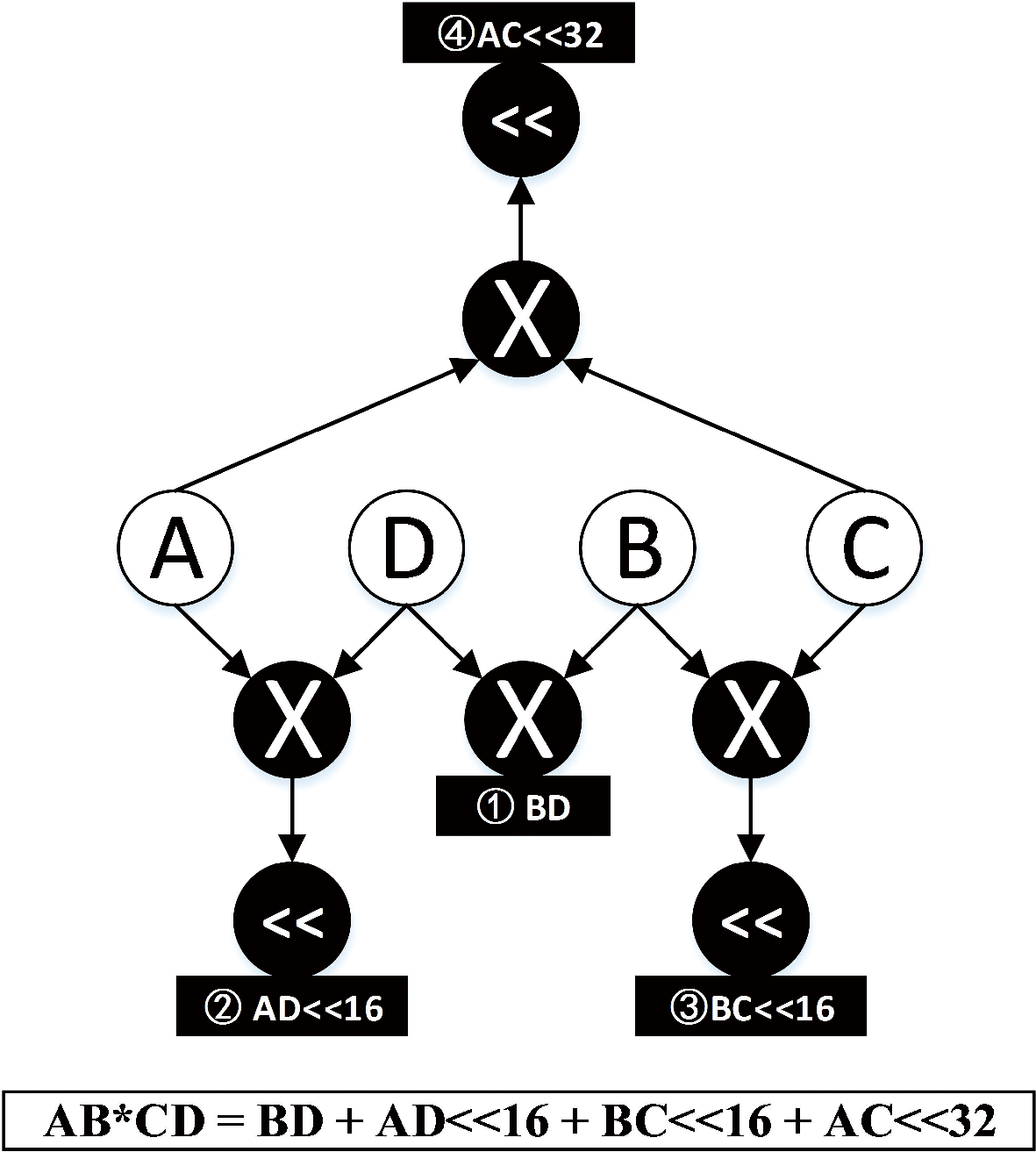

Fig. 4 Multiplier multiplexing

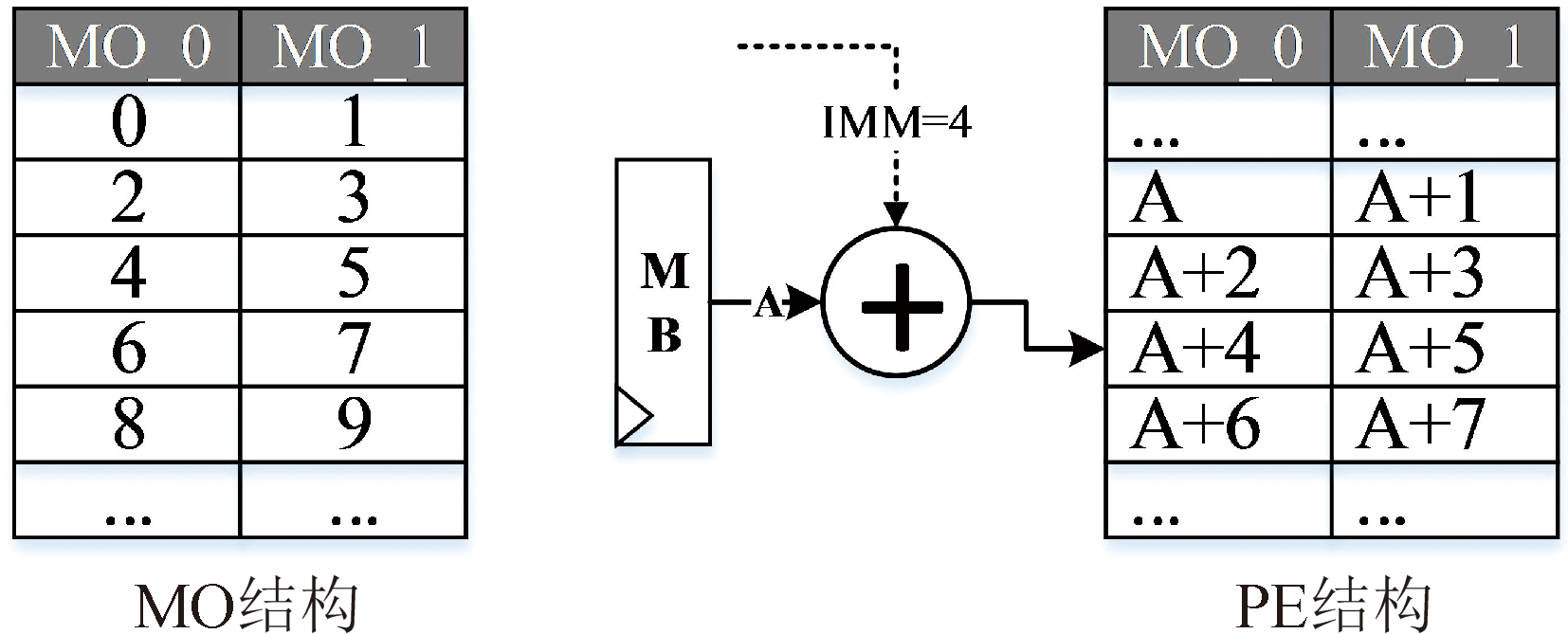

Fig. 5 Structure of memory unit

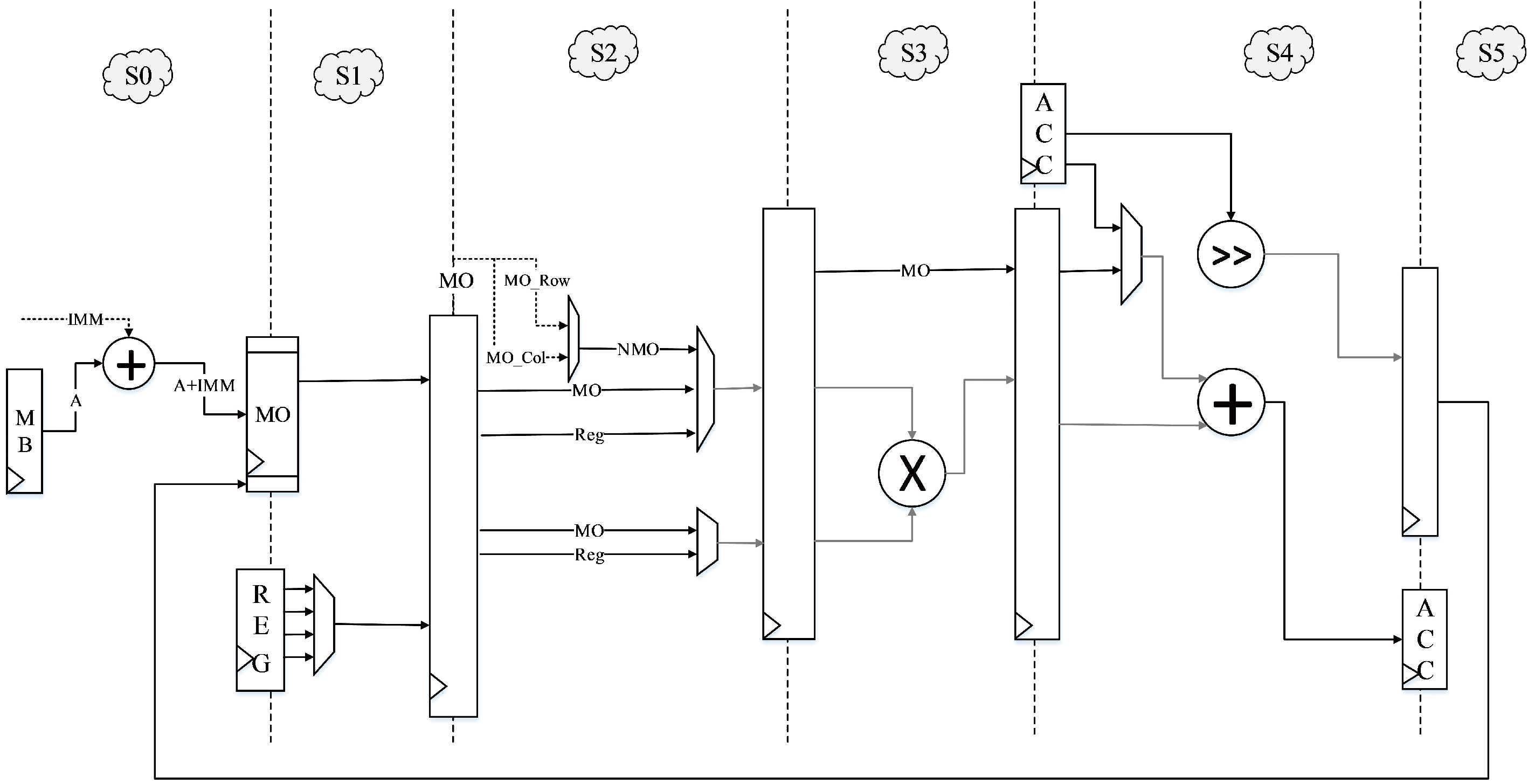

Fig. 6 Pipeline structure
Table 1 Timing results
Fig. 7 Critical path analysis
Table 2 Physical synthesis results
Fig. 8 Placement of computing module

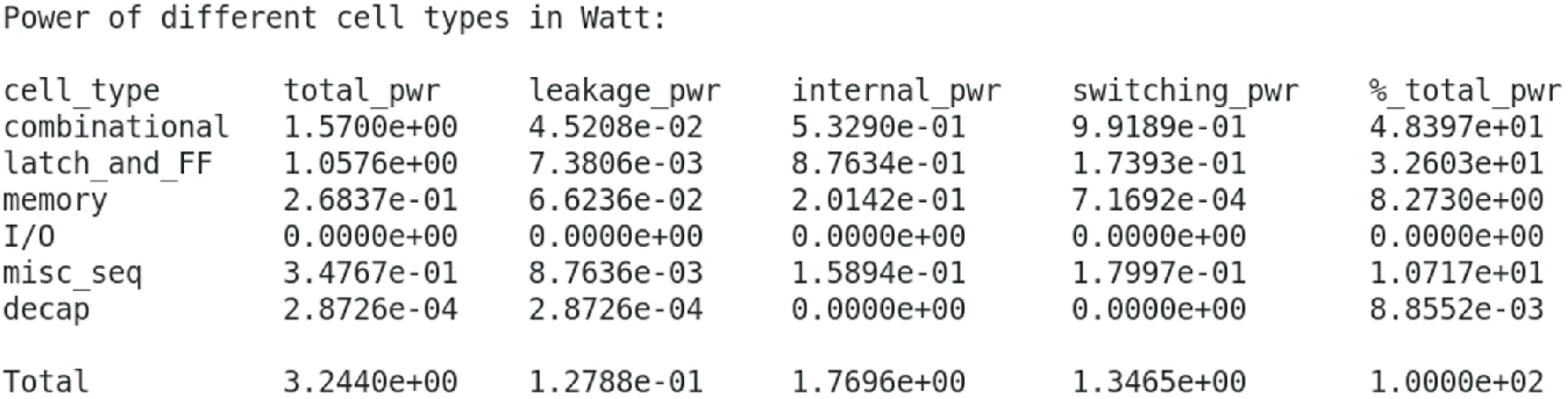

Fig. 9 Power analysis of computing module
